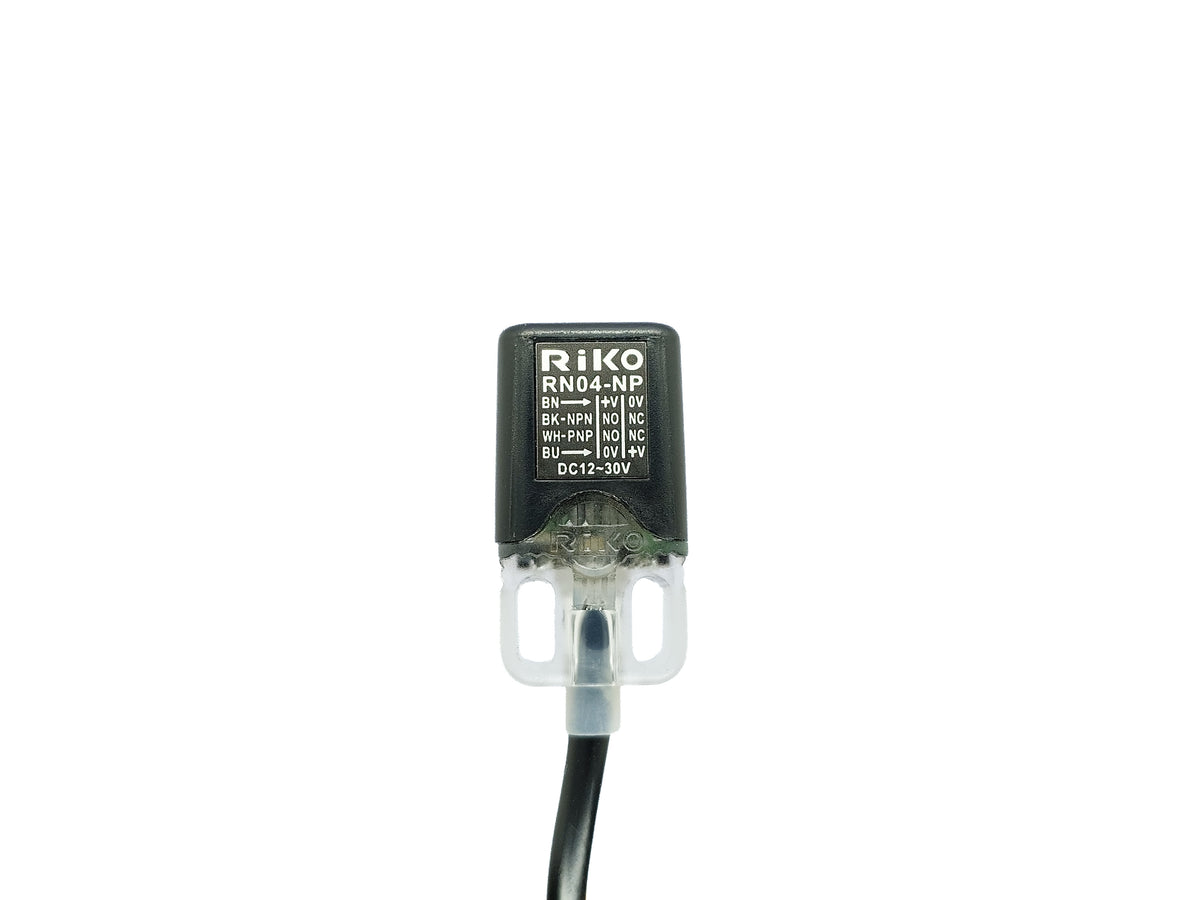

Proximity Switch Block Type Inductive 4-in-1 NPN/PNP NO/NC

The RN04-NP is a block-type inductive proximity switch designed for non-contact metallic object detection in industrial automation systems. Featuring a 4-in-1 universal output (NPN/PNP, NO/NC), reduces the need to stock multiple sensor variants. With a 5mm front-facing sensing distance, 500 Hz response frequency, rugged IP67-rated enclosure, and built-in surge and overload protection.

• 4-in-1 Universal Output: Combines NPN and PNP with Normally Open (NO) and Normally Closed (NC) configurations in a single 4-wire sensor
• IP67 Ingress Protection: Fully sealed against water, oil, and dust ingress, making it suitable for wet and demanding factory environments.
• Integrated Circuit Protection: Built-in surge suppression and overload protection guard internal electronics against line spikes and short-circuit faults.
• 12–30VDC Voltage Compatibility: Operates on standard 12V and 24V power supplies with low current consumption (≤ 8mA no-load) and up to 100 mA load.

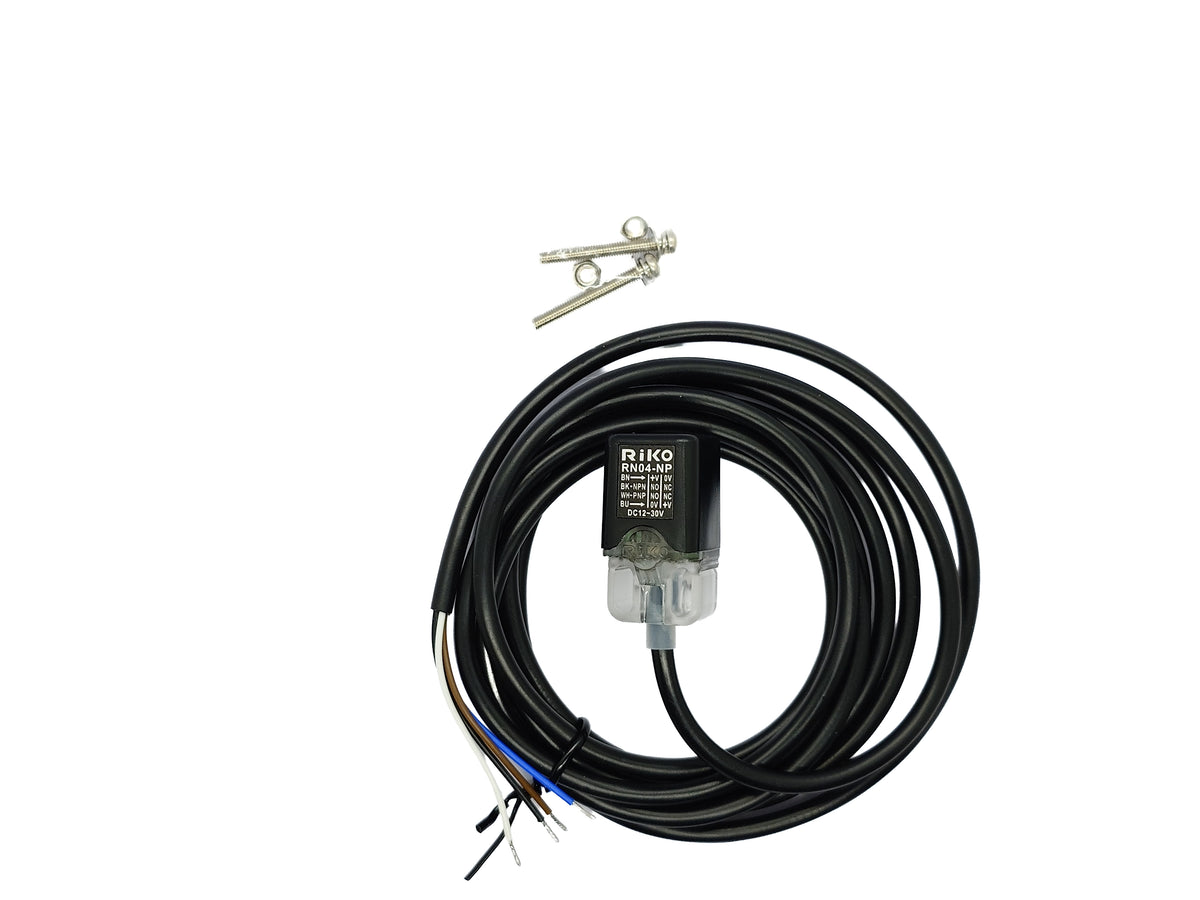

• Robust Industrial Build: Features a pre-wired 2-meter cable, AC 1000V dielectric withstand voltage, and a wide operating temperature range of -20°C to +60°C.
