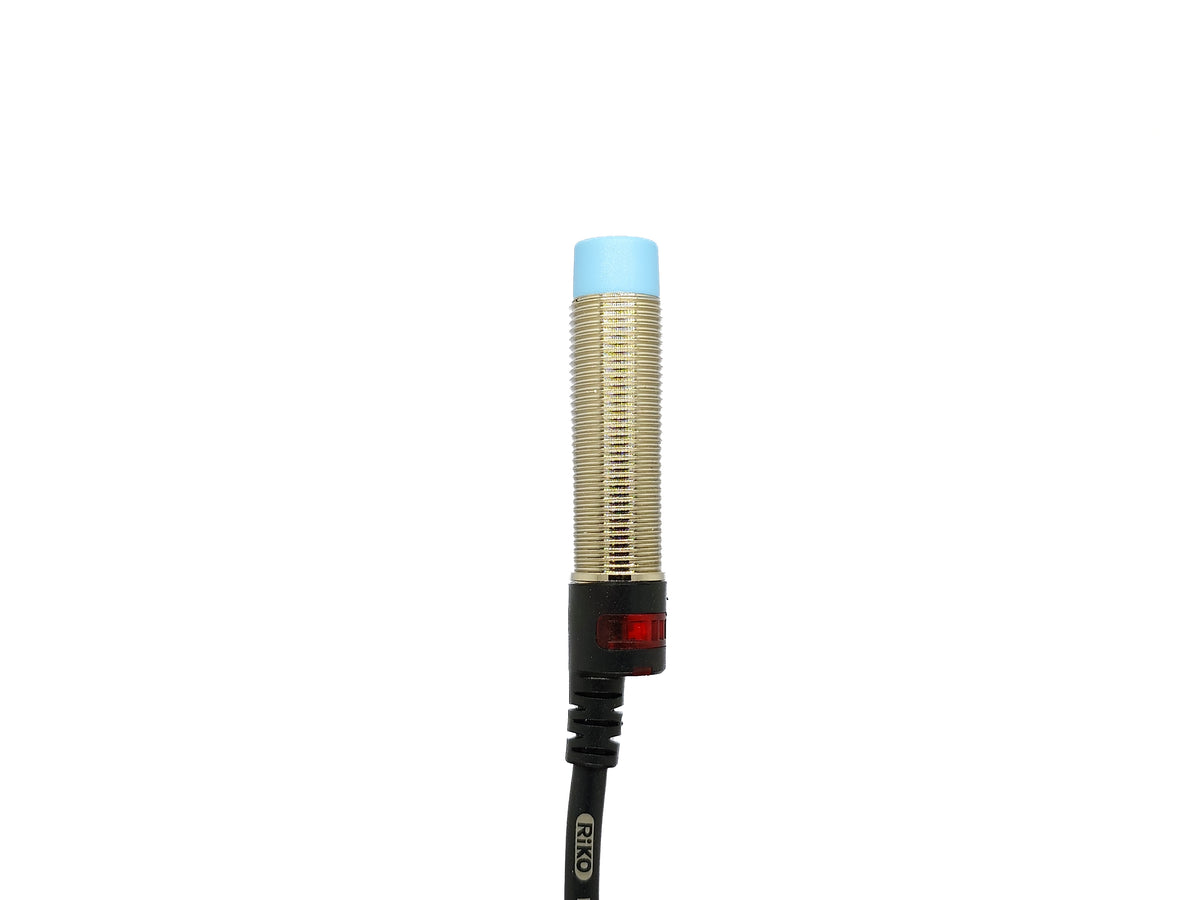

Proximity Switch Cylindrical M12 Inductive 4-in-1 NPN/PNP NO/NC

The PSC1205-NP is a cylindrical M12 inductive proximity switch designed for non-contact metallic object detection in demanding automated machinery. Featuring a 4-in-1 universal output (NPN/PNP, NO/NC) and a specialized high bending resistance cable, it is built for dynamic applications such as moving carriages. With a 5mm sensing range, 500 Hz switching frequency, IP67 ingress protection, and integrated surge and overload safety circuits.

• 4-in-1 Universal Output: Combines NPN and PNP with Normally Open (NO) and Normally Closed (NC) configurations in a single 4-wire sensor

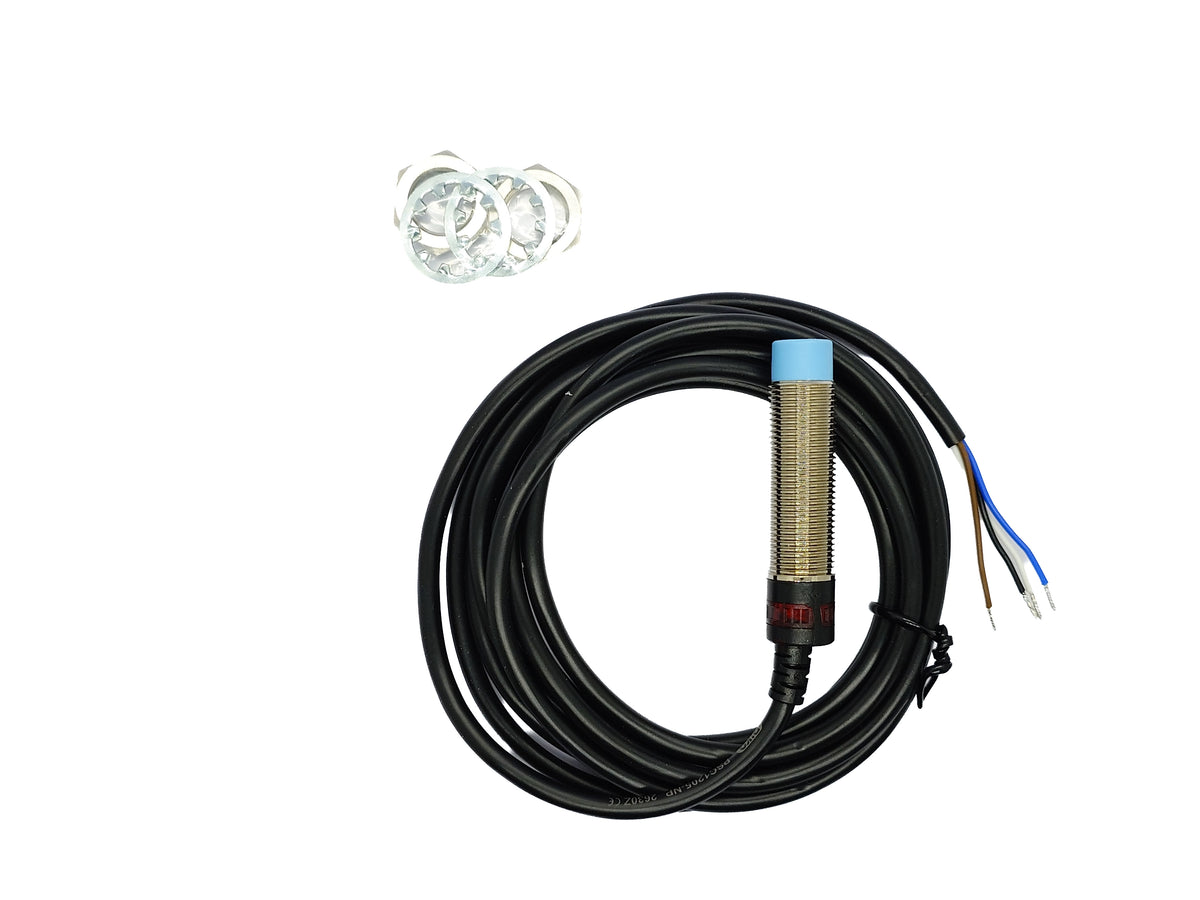

• High Bending Resistance Cable: 2-meter pre-wired cable designed to withstand repeated flexing in demanding moving parts.
• IP67 Waterproof & Dustproof Body: Completely sealed against dust, oil, and water ingress, rated for operation across temperatures from -20°C to +60°C.
• Integrated Electrical Protection: Equipped with built-in surge suppression and overload protection to shield circuitry against line transients and short circuits.
• 12–30VDC Voltage Compatibility: Operates on standard 12V and 24V power supplies with low current consumption (≤ 14mA no-load) and up to 100 mA load.
