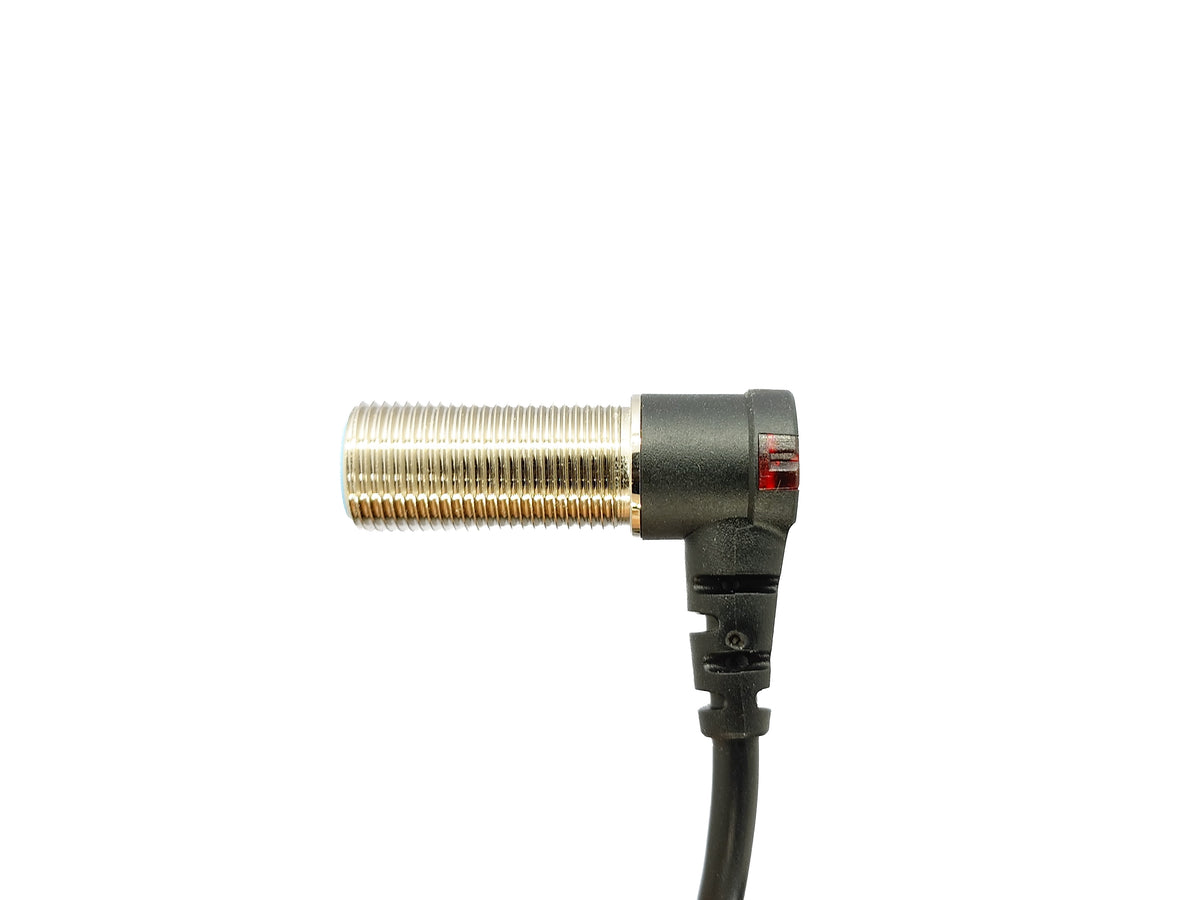

Proximity Switch Cylindrical M12 Inductive 90 Degree 4-in-1 NPN/PNP NO/NC

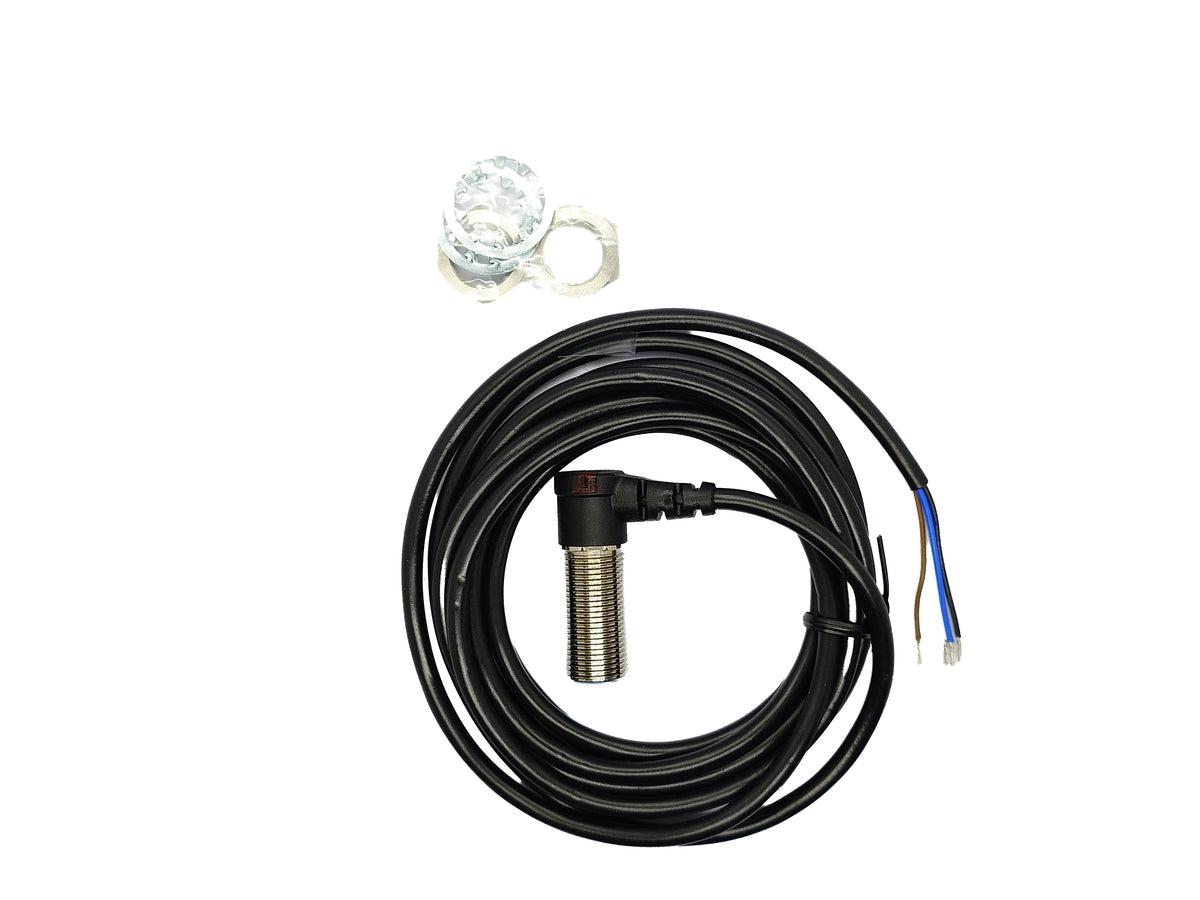

The PSD1202-NP is a cylindrical M12 inductive proximity switch designed for non-contact metallic object detection in demanding automated machinery. Featuring a 4-in-1 universal output (NPN/PNP, NO/NC) and a specialized high bending resistance cable, it is built for dynamic applications such as moving carriages. With the 90 degree wire out design, the overall length is reduced to a compact 40mm.

• 4-in-1 Universal Output: Combines NPN and PNP with Normally Open (NO) and Normally Closed (NC) configurations in a single 4-wire sensor

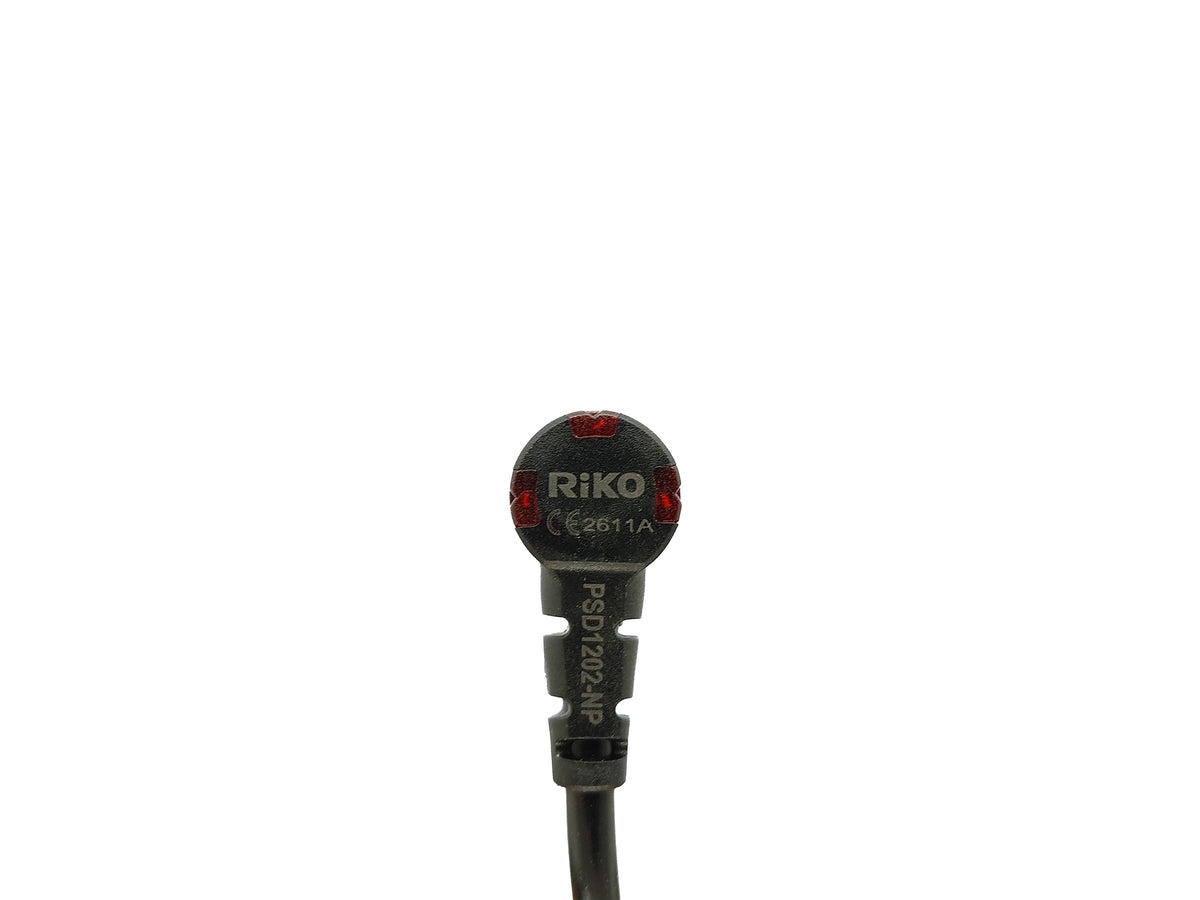

• Right Angle Cable: Angled wire out design reduces overall sensor length
• IP67 Waterproof & Dustproof Body: Completely sealed against dust, oil, and water ingress, rated for operation across temperatures from -20°C to +60°C.
• Integrated Electrical Protection: Equipped with built-in surge suppression and overload protection to shield circuitry against line transients and short circuits.
• 12–30VDC Voltage Compatibility: Operates on standard 12V and 24V power supplies with low current consumption (≤ 14mA no-load) and up to 100 mA load.
