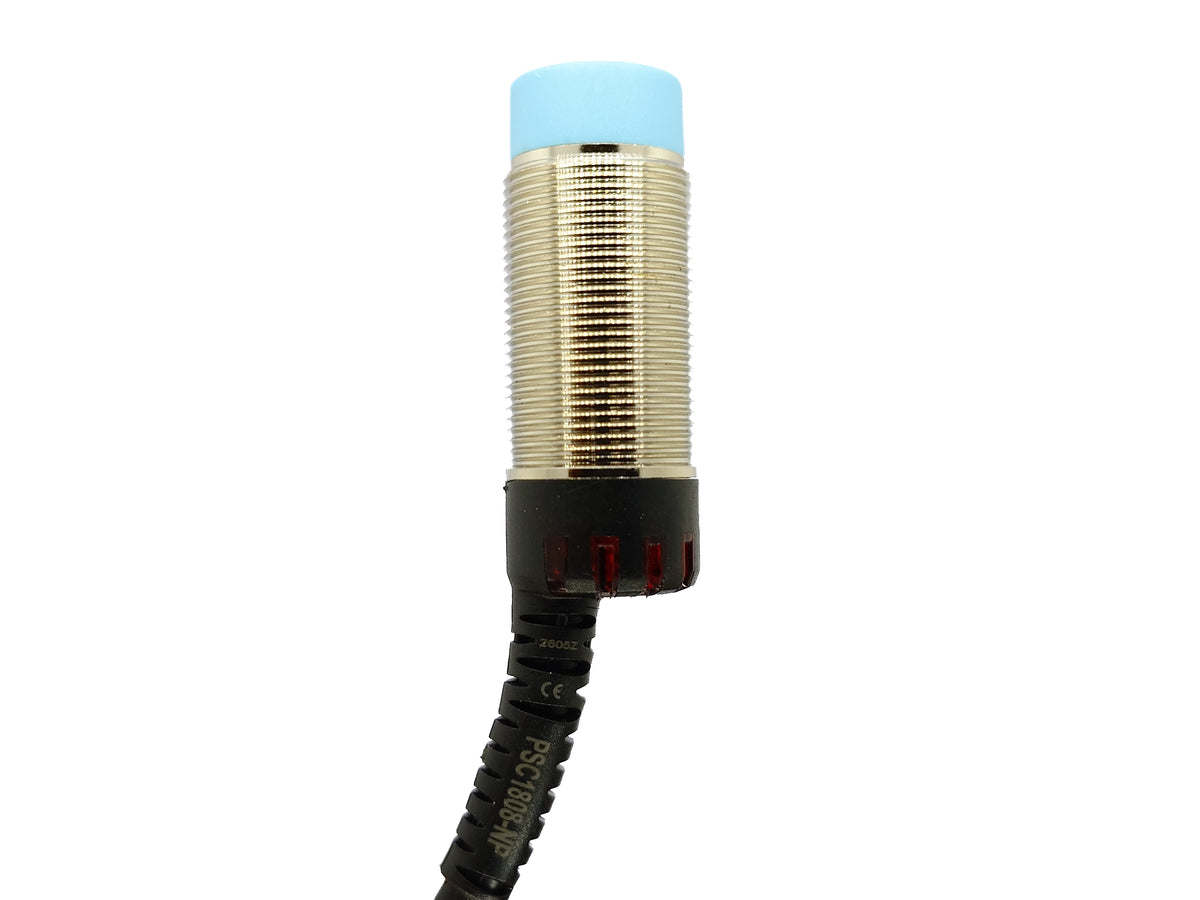

Proximity Switch Cylindrical M18 Inductive 4-in-1 NPN/PNP NO/NC

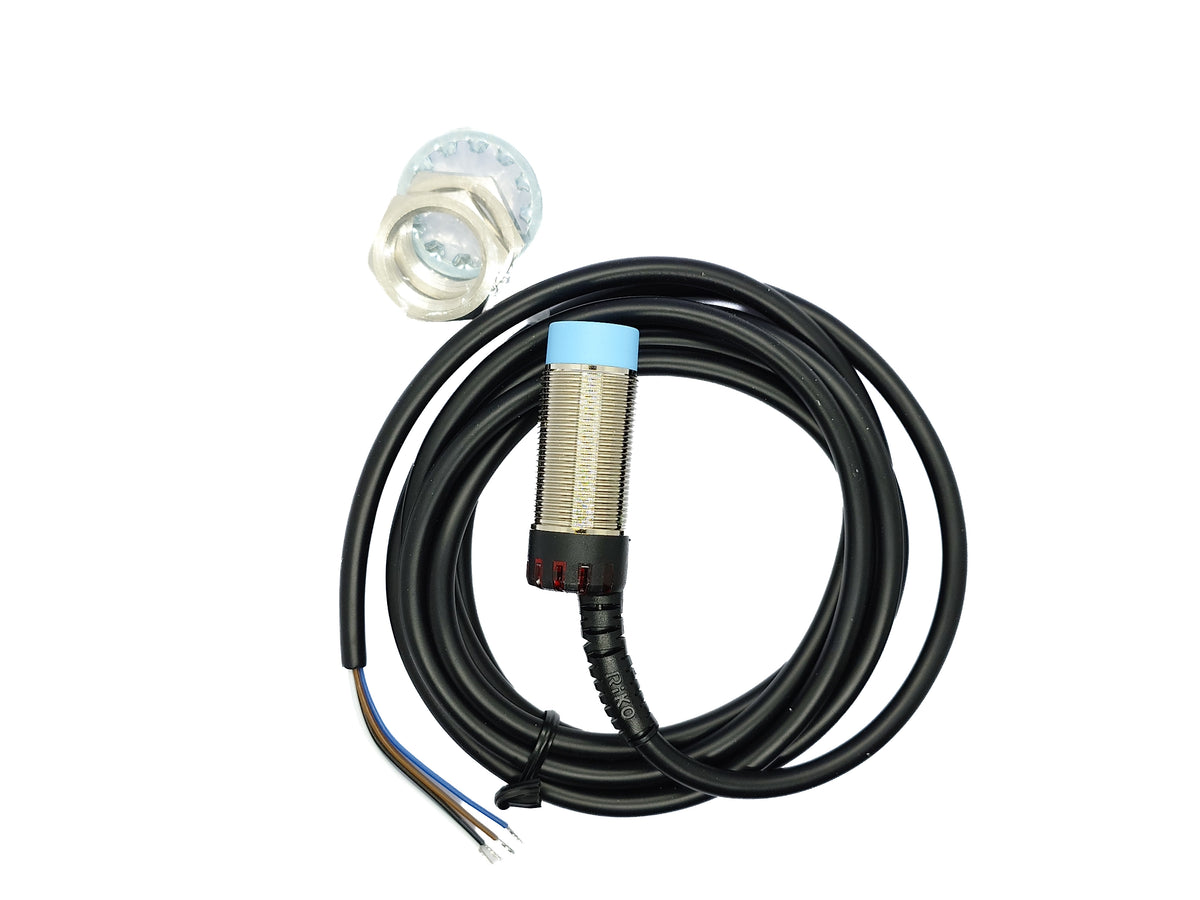

The PSC1808-NP is a cylindrical M18 inductive proximity switch designed for reliable, non-contact metallic object detection in industrial automation systems. Equipped with a universal 4-in-1 output configuration (NPN/PNP, NO/NC) and a high bending resistance cable, it is built to perform in demanding machinery applications. 8mm sensing distance, 600 Hz response frequency, IP67 ingress protection, and integrated surge and overload safety features.

• 4-in-1 Universal Output: Combines NPN and PNP with Normally Open (NO) and Normally Closed (NC) configurations in a single 4-wire sensor
• High Bending Resistance Cable: 2-meter pre-wired cable designed to withstand repeated flexing in demanding moving parts.
• IP67 Ingress Protection: Fully sealed against water, oil, and dust ingress, operating reliably across an ambient range of -20°C to +60°C.
• Integrated Electrical Safeguards: Built-in surge suppression and overload protection shield internal circuitry against line voltage spikes and short-circuit faults.
• 12–30VDC Voltage Compatibility: Operates on standard 12V and 24V power supplies with low current consumption (≤ 14mA no-load) and up to 100 mA load.
