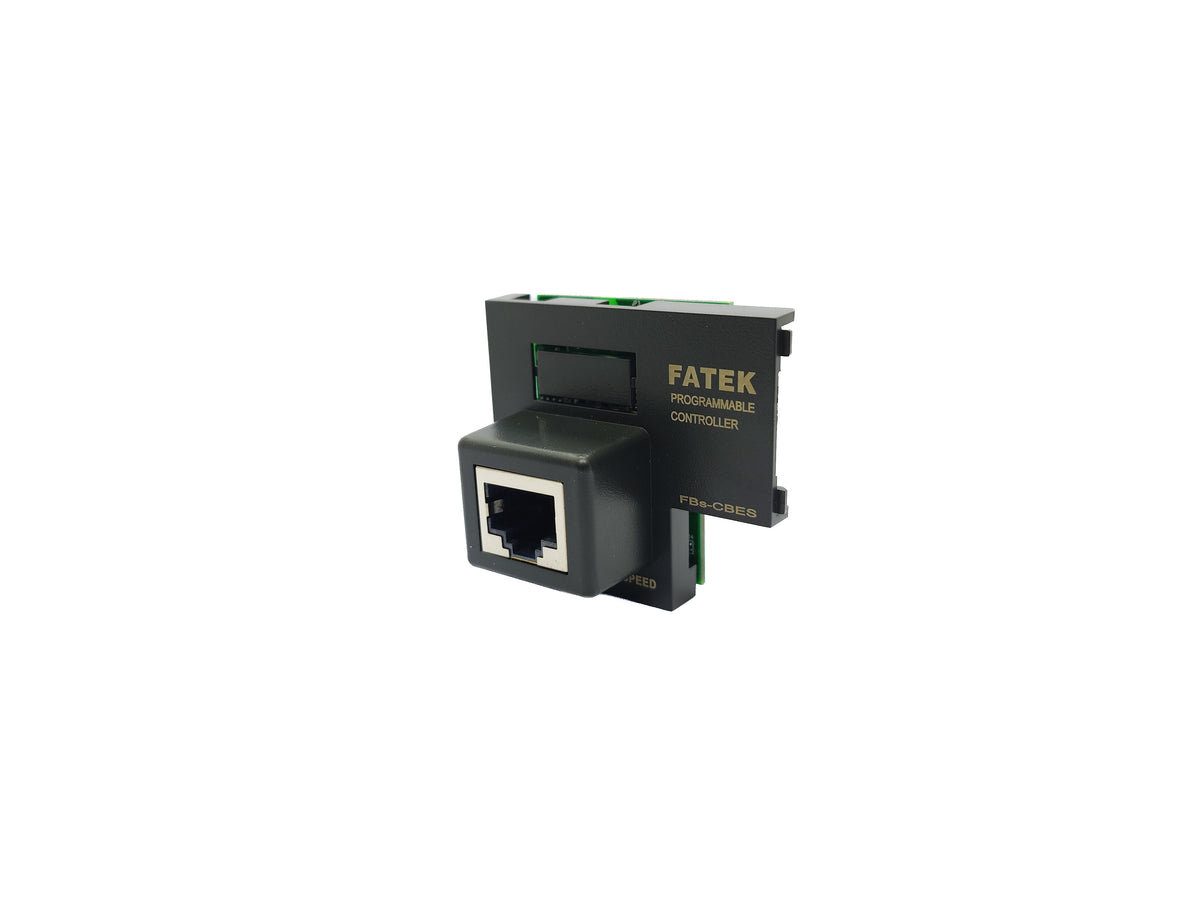

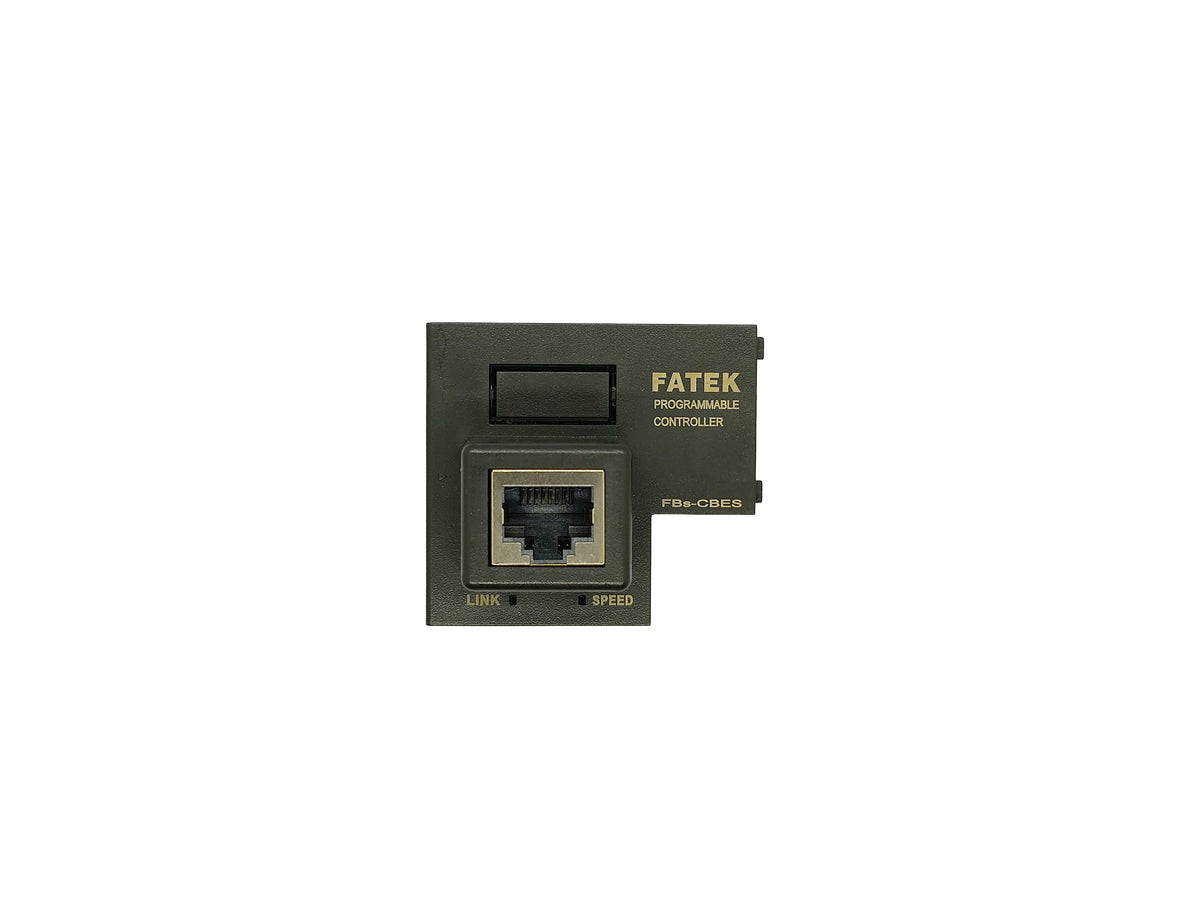

PLC Ethernet Modbus TCP Expansion Module for FBs series

The FATEK FBs-CBES is an Ethernet communication expansion board designed specifically for FATEK FBs series programmable logic controllers. Mounting directly into the main unit’s COM expansion port, it provides 10/100 Base-T network connectivity via a standard RJ-45 port without requiring additional DIN-rail space. Supporting Modbus TCP server (slave) and FATEK proprietary communication protocol, the FBs-CBES enables simple data communication with higher level control systems.

• 10/100 Base-T Ethernet Connectivity: Features an integrated 10/100 Base-T interface with a standard RJ-45 connector for reliable network integration.
• Supported Protocol: Modbus-TCP server (slave) mode as well as FATEK client and server, enabling communication with third-party PLCs, HMIs, and SCADA systems.
• Modbus TCP Port: Standard industrial communications (Port 502 for Modbus-TCP) with options for custom IP port assignments.
• Ethernet Configuration: Fatek configuration software available.
• Register Mapping: Direct access to PLC internal memory register and IO
• Remote IO: Viable to apply the PLC as a remote IO station
