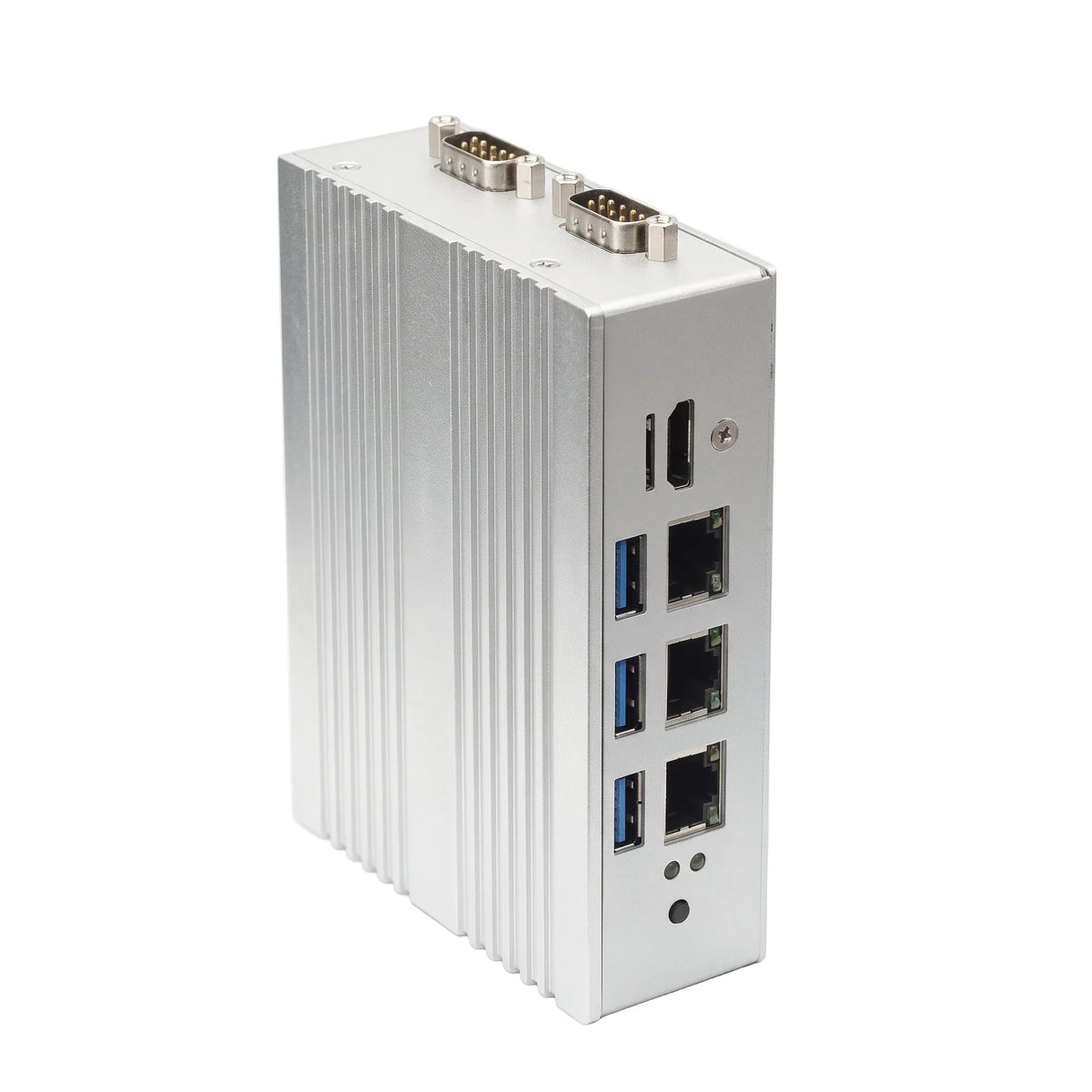

Industrial PC Net 2

$760.00

Powered by multi-core processors, Net 2 industrial PC delivers low-latency control and deterministic execution. Tested for CODESYS, it supports IEC 61131-3 PLC programming and integrates with EtherCAT, PROFINET, Modbus TCP, and Ethernet/IP protocols. Its fanless, wide-temperature design ensures reliable 24/7 operation in harsh industrial environments. Supporting OPC UA and Node-RED for IoT and edge computing applications, along with flexible serial and Ethernet I/O interfaces, it offers versatile connectivity and expansion options.

Features:

Compact fanless embedded computer
Intel® Amston Lake ATOM® x7000 series CPU
Independent display: 1 x HDMI®
3 x Intel 2.5 GbE LAN, 3 x USB 3.2, 2 x COM
2 x M.2, 1 x Nano SIM
Supports IEC 61131-3 PLC programming
Integration with EtherCAT, PROFINET, Modbus TCP, and Ethernet/IP protocols
Built for harsh environments and 24/7 uptime
Supports OPC UA, Node-RED and SQLite
Serial and Ethernet I/O interface

Software License:

Choose "None" for industrial PC with Linux OS installed.
Choose "CODESYS PLC Control" or "CODESYS Motion Control" for plug-and-play solutions.

Motherboard	2I740DW
CPU	Intel Atom® x7213RE Processor
Chipset	Intel Amston Lake SoC
Memory	Onboard 4GB LPDDR5
Storage	M.2-SSD 128GB
I/O ports	Network 3 x Intel 2.5 GbE
	USB 3 x USB 3.2
	Serial ports 2 x RS232 / 422 / 485
	Display 1 x HDMI®
OS support	Windows® 10 IOT ; Windows® 11 IOT
OS support	Linux Debian 10
Dimensions	L120 x W90 x H35 mm
Weight	0.52kg
Mounting	DIN-Rail Mount
DC input	Wide Range +9~24V
Operating Temp. (100 % CPU usage)	-20°C to +60°C
Storage Temp.	-20°C to +60°C
Relative Humidity	95% @ 40°C, non-condensing

IPC: Standalone Industrial PC with Linux OS installed. No CODESYS. Suitable for gateway, edge computing and other applications.
IPC controller (IPC + CODESYS PLC control): Industrial PC with Linux OS installed, PREEMPT_RT kernel configured, CODESYS Control Basic M licensed. Suitable for PLC applications with less than 128 I/O, minimum number of field buses, and small scale Linux applications. Plug-and-play, ready to use out of the box.
IPC motion controller (IPC + CODESYS motion control): Industrial PC with Linux OS installed, PREEMPT_RT kernel configured, CODESYS Control Standard S and 4 SoftMotion Axes licensed. Suitable for PLC applications with 4 axes motion control capability, numerous field bus communication, and small scale Linux applications. Plug-and-play, ready to use out of the box.

If your application is requires different configuration or licensing to our standard offerings, we recommend choosing the "None" option for Software License Add-ons. Our support engineer will guide you through the installation process.
