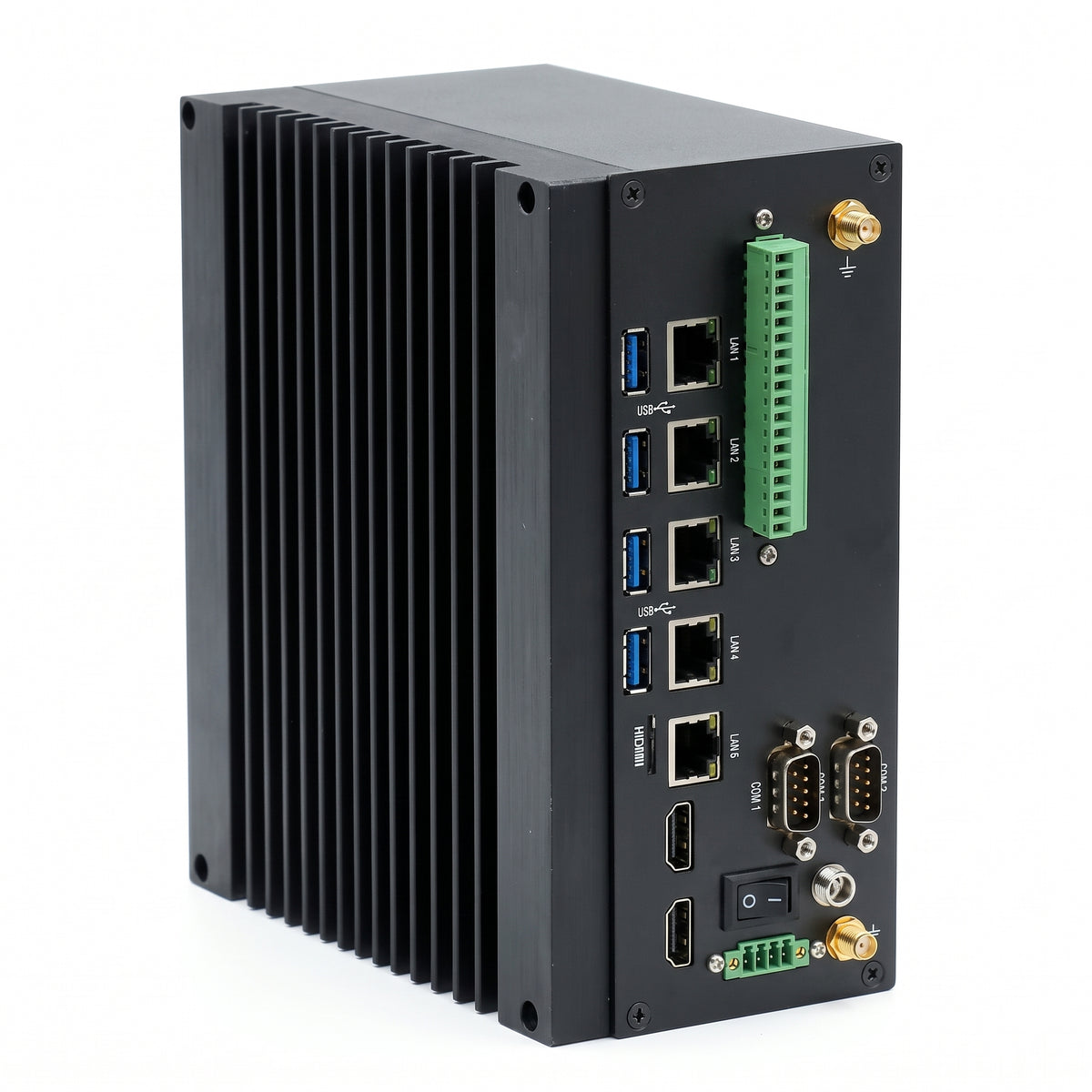

Industrial PC Sky 3

$1,975.00

Powered by multi-core processors, Sky 3 industrial PC delivers low-latency control and deterministic execution. Tested for CODESYS, it supports IEC 61131-3 PLC programming and integrates with EtherCAT, PROFINET, Modbus TCP, and Ethernet/IP protocols. Its fanless, wide-temperature design ensures reliable 24/7 operation in harsh industrial environments. Supporting OPC UA and Node-RED for IoT and edge computing applications, along with flexible serial and Ethernet I/O interfaces, it offers versatile connectivity and expansion options.

Features:

Fanless embedded computer
Intel® Core™ i5-1335UE processor
SODIMM DDR5, 16GB
Multiple independent display: 2 x HDMI®
5 x Intel 2.5 GbE LAN, 3 x USB 3.2, 1 x USB 2.0
1 x Mini PCIe, 1 x M.2 M Key, 1 x M.2 B Key, 1 x Nano SIM
2 x COM, 4DI / 4DO
Supports IEC 61131-3 PLC programming
Integration with EtherCAT, PROFINET, Modbus TCP, and Ethernet/IP protocols
Built for harsh environments and 24/7 uptime
Supports OPC UA and Node-RED
Serial and Ethernet I/O Interface

Software License:

Choose "None" for industrial PC with Linux OS installed.
Choose "CODESYS PLC Control" or "CODESYS Motion Control" for plug-and-play solutions.

Motherboard	3I130DW
CPU	Intel® Core™ i5-1335UE Processor
Chipset	Intel Raptor Lake-P/U ; Alder Lake-P/U SoC
Memory	SODIMM DDR5, 16GB
Storage	M.2 SSD 512GB
I/O ports	Network 5 x Intel 2.5GbE
	USB 3 x USB 3.2 Gen 1 x 1, 1 x USB 2.0
	Serial ports 2 x RS232 / 422 / 485
	Display 2 x HDMI®
	GPIO 4 x DI / 4 x DO (option)
OS Support	Linux Debian 10
Dimensions	L183 x W142.2 x H83.9 mm
Weight	2.8 kg
Mounting	Wall Mount
DC input	9~36V
Operating Temp. (100 % CPU usage)	-40°C~55°C (under specific environmental & CPU power consumption conditions.)
Relative Humidity	95% @ 40°C, non-condensing
Certification	CE / FCC class A

IPC Hardware Only: suitable for gate way, edge computing, web server, SQL database, node-red and other applications
IPC controller (IPC + CODESYS PLC control): Industrial PC with Linux OS installed, PREEMPT_RT kernel configured, CODESYS Control Basic M licensed. Suitable for PLC applications with less than 128 I/O, minimum number of field buses, and Linux applications. Plug-and-play, ready to use out of the box.
IPC motion controller (IPC + CODESYS motion control): Industrial PC with Linux OS installed, PREEMPT_RT kernel configured, CODESYS Control Standard M and 4 SoftMotion Axes licensed. Suitable for PLC applications with 4 axes motion control capability, numerous field bus communication, and Linux applications. Plug-and-play, ready to use out of the box.

If your application requires different configuration or licensing to our standard offerings, we recommend choosing the "None" option for software license add-ons. Our support engineer will guide you through the installation process.

No diagrams are available for this product yet. Contact us if you need wiring or dimension drawings.

No videos are available for this product yet.

No documentation is available for this product yet. Contact us to request datasheets or manuals.
