Solid State Relay Module 1.5A 16 DC Output

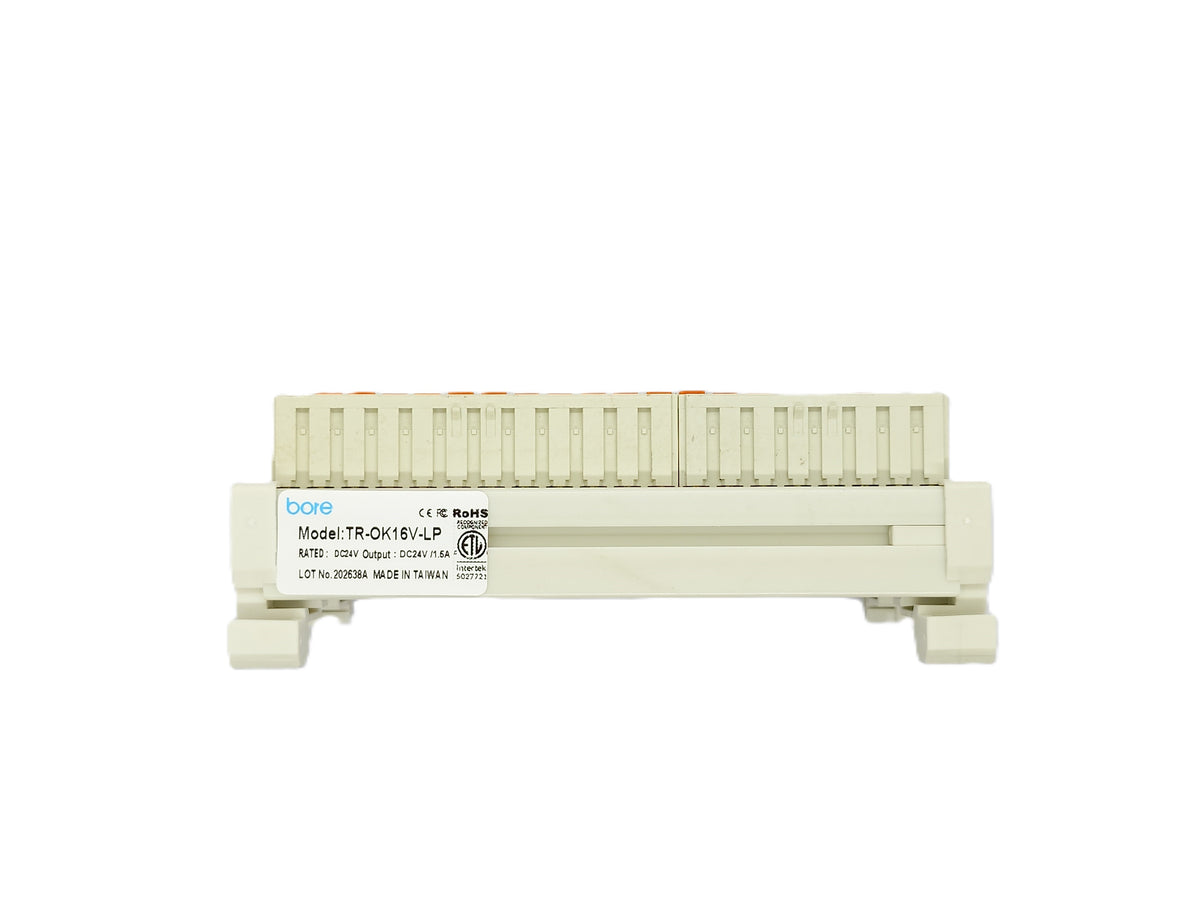

TR-OK16V-LP is a 16-channel solid-state relay module offering high-speed, silent DC output switching with integrated flyback and self-resetting overload protection. Ideal for interface isolation and NPN-to-PNP signal conversion.

• High-Density 16-Channel Configuration: Features 16 channel SPST NO output supporting DC 24V / 1.5A resistive and inductive loads (up to DC 30V max contact voltage).
• Microsecond Response Times: Provides silent switching with rapid 50 µs turn-on and 360 µs turn-off speeds and unlimited mechanical/electrical life.
• Flyback Diode Voltage Suppression: Equipped with built-in flyback diodes to protect switching element from high inductive transients voltage.
• Self-Resetting Overload Protection: Resettable fuses automatically disconnect loads during overload, automatically resets after fault clearance.
• 2,000V Isolation & Visual Monitoring: Offers 2,000V dielectric withstand voltage alongside Green (Power), Yellow (Signal), and Red (Operation) status LEDs.
• Push-In Spring Terminals: Utilizes 5.0 mm push-in spring terminals within a 108 × 48 × 42.4 mm footprint designed for fast, tool-free installation.
• Certifications: Built for harsh environments; fully certified to CE, UL, FCC, and RoHS standards.
