Solid State Relay Module 1.5A 08 DC Output

TR-OK08V-LP is an 8-channel solid-state relay module offering high-speed, silent DC output switching with integrated flyback and self-resetting overload protection. Ideal for interface isolation and NPN-to-PNP signal conversion.

• 8-Channel 1.5A DC Switching: Features 8 channel SPST NO output supporting DC 24V / 1.5A resistive and inductive loads (up to DC 30V max contact voltage).
• High-Speed Silent Operation: Operates silently with fast response time (50 µs turn-on and 360 µs turn-off).
• Built-In Flyback Protection: Incorporates flyback diodes to attenuate inductive voltage spikes and protect transistors from damage.
• Self-Resetting Overload Protection: Resettable fuses automatically disconnect loads during overload, automatically resets after fault clearance.
• Tri-Color LED Status Diagnostics: Includes dedicated LED indicators for Power (Green), Signal (Yellow), and Operation (Red).
• Push-In Spring Terminals: Fitted with 5.0 mm push-in spring terminal blocks in an compact 59 × 48 × 42.4 mm footprint.

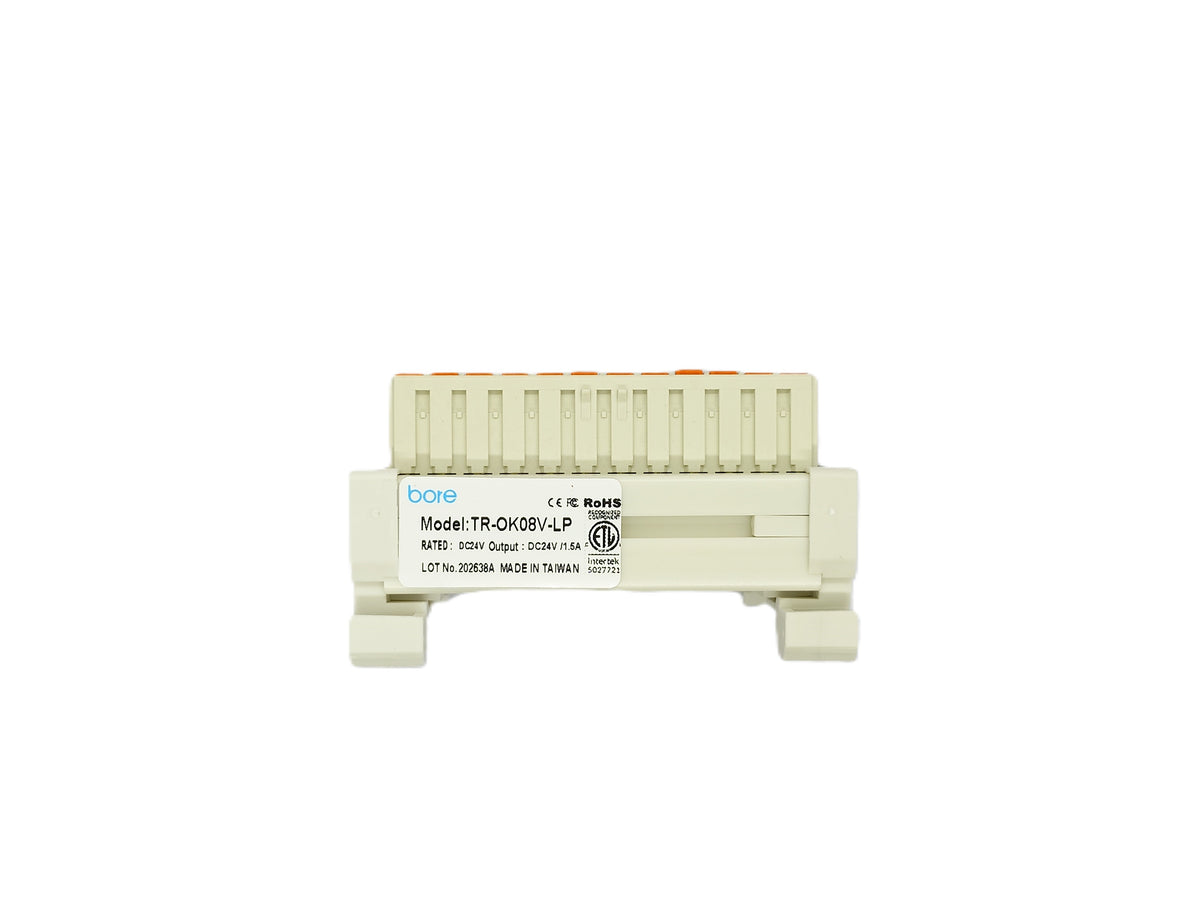

• Certifications: Built for harsh environments; fully certified to CE, UL, FCC, and RoHS standards.
