Solid State Relay Module 2A 08 AC Output

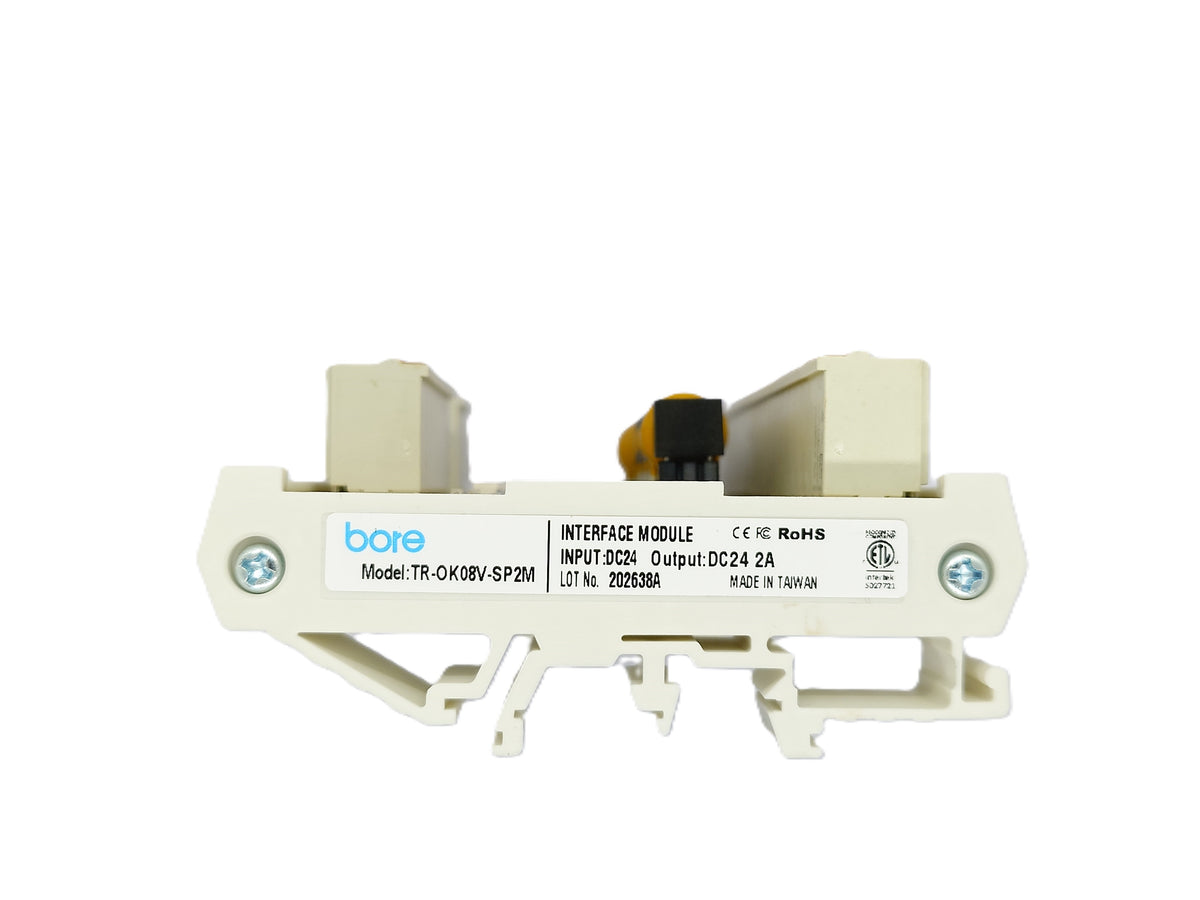

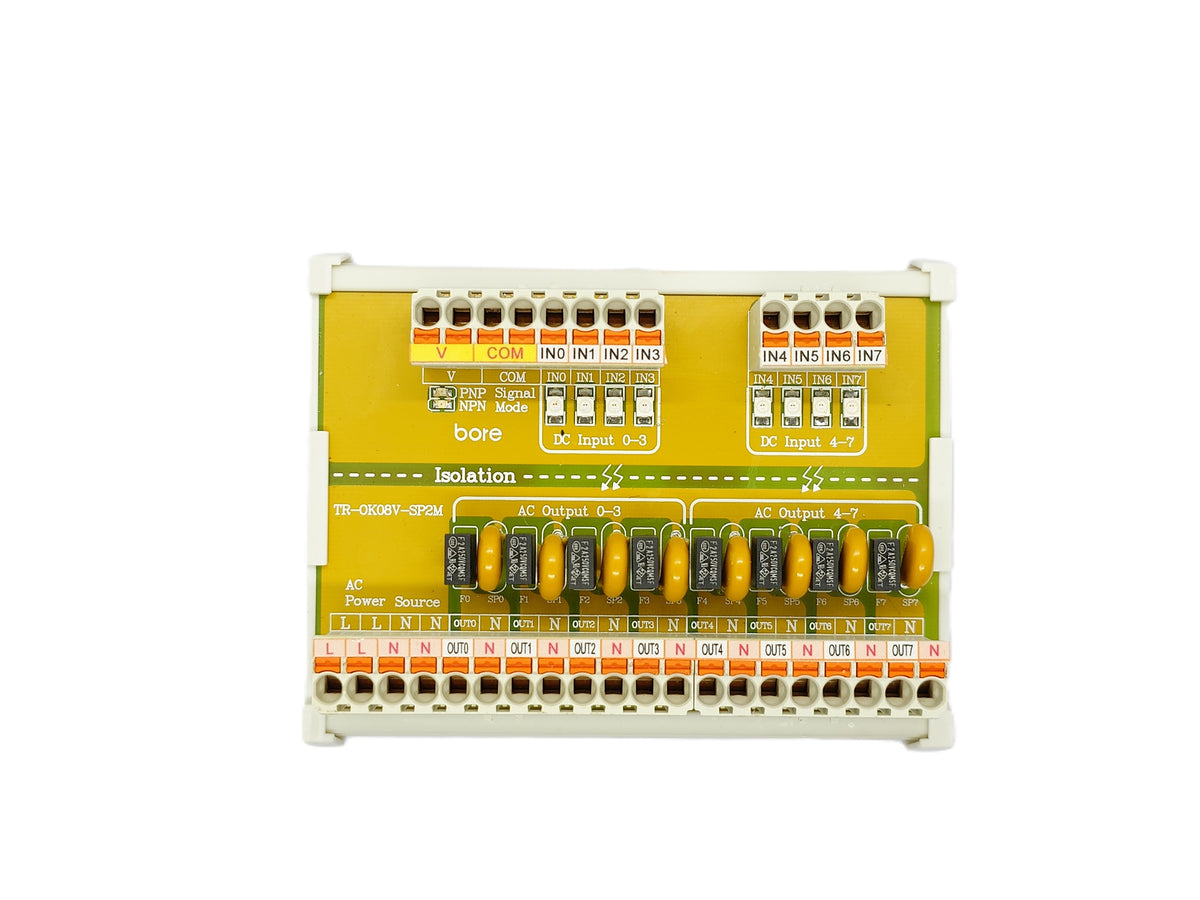

TR-OK08V-SP2M is an 8-channel solid-state relay module offering high-speed, silent AC output switching with MOV surge suppressor and quick fuse overload protection.

• 8-Channel 2A AC Load: 8 SPST NO solid-state channels rated for AC 48-240VAC / 2A resistive and inductive loads.
• Zero-Wear Switching: Silent switching during zero-crossing.
• Surge Suppression: Built-in MOV surge suppressors in each channel to protect switching element against voltage spikes.
• Fast-Acting Overcurrent Protection: Uses 2A fast-acting fuses for each channel that disconnect circuits during overcurrent
• Three-State Visual Indicators: Power (Green), Signal (Yellow), and Operation (Red) LEDs along with 2,000V electrical isolation.
• Push-In Spring Terminals: Built with 5.0 mm push-in spring terminals in a 108 × 86 × 42.4 mm footprint.
• Certifications: Built for harsh environments; fully certified to CE, UL, FCC, and RoHS standards.
