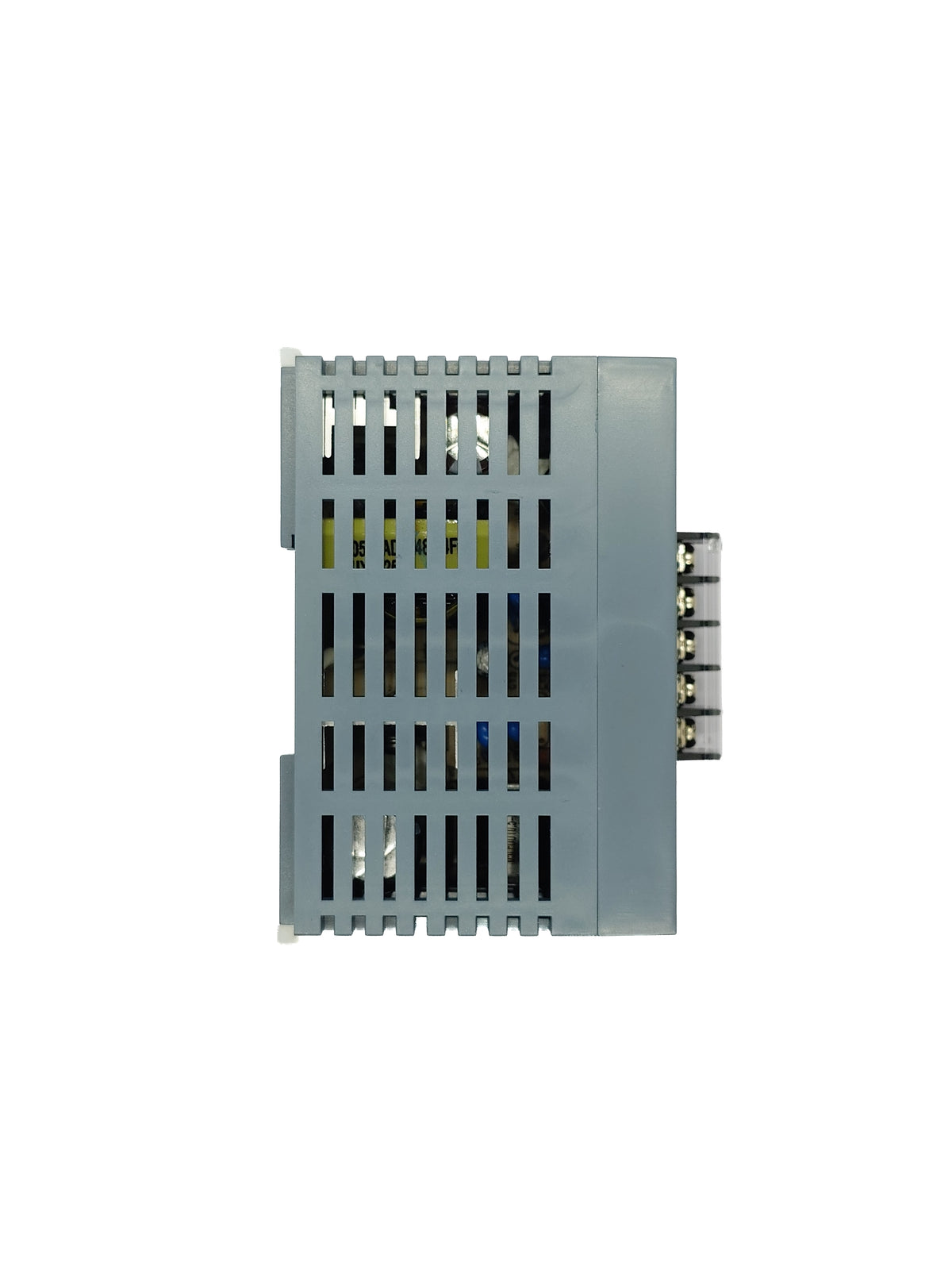

Switching Power Supply 24VDC 48W DIN Rail Mount

Expanded product image

Switching Power Supply 24VDC 48W DIN Rail Mount

Expanded product image

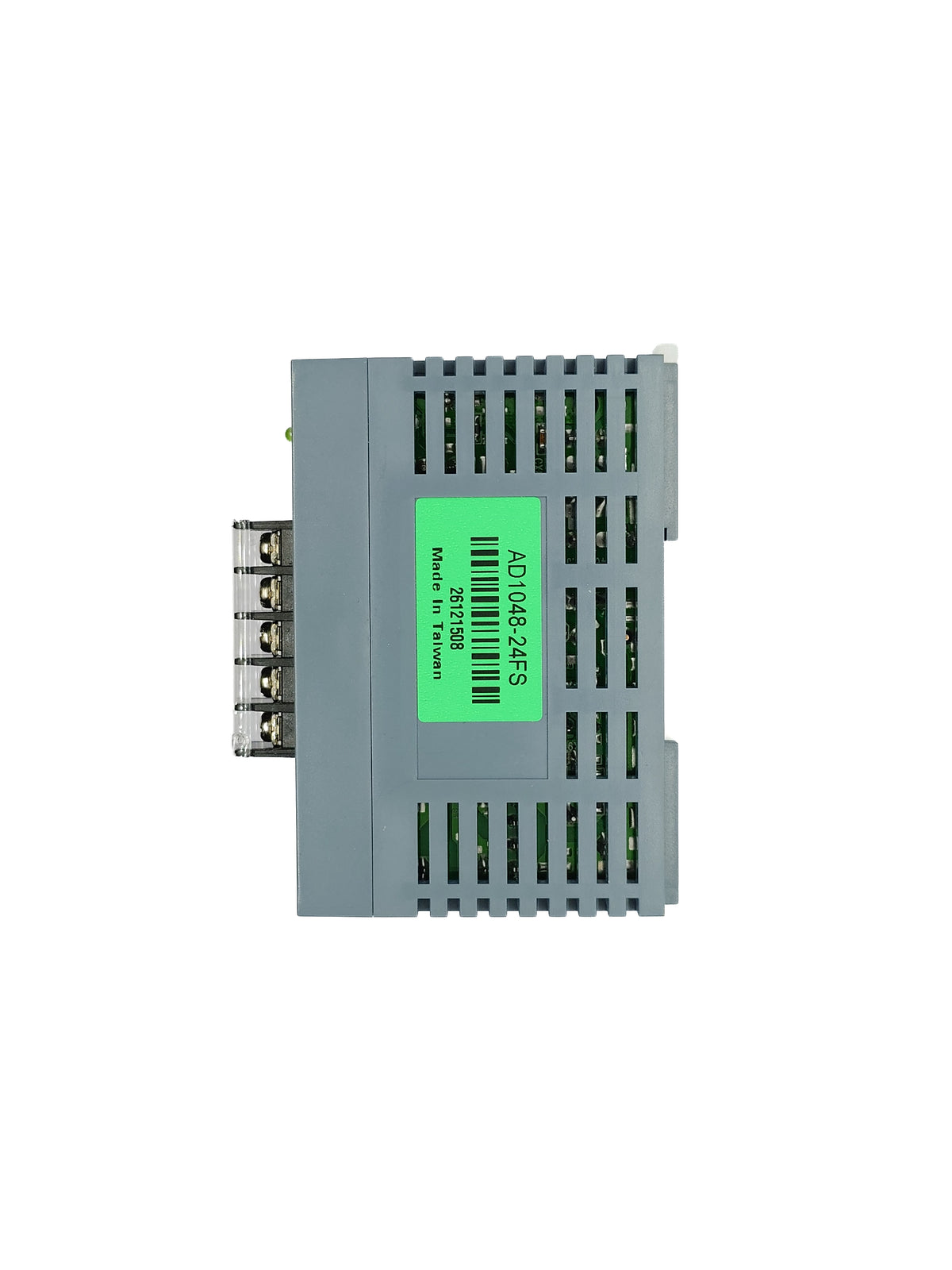

Switching Power Supply 24VDC 48W DIN Rail Mount

Sematrol

Switching Power Supply 24VDC 48W DIN Rail Mount

Price: $24.29

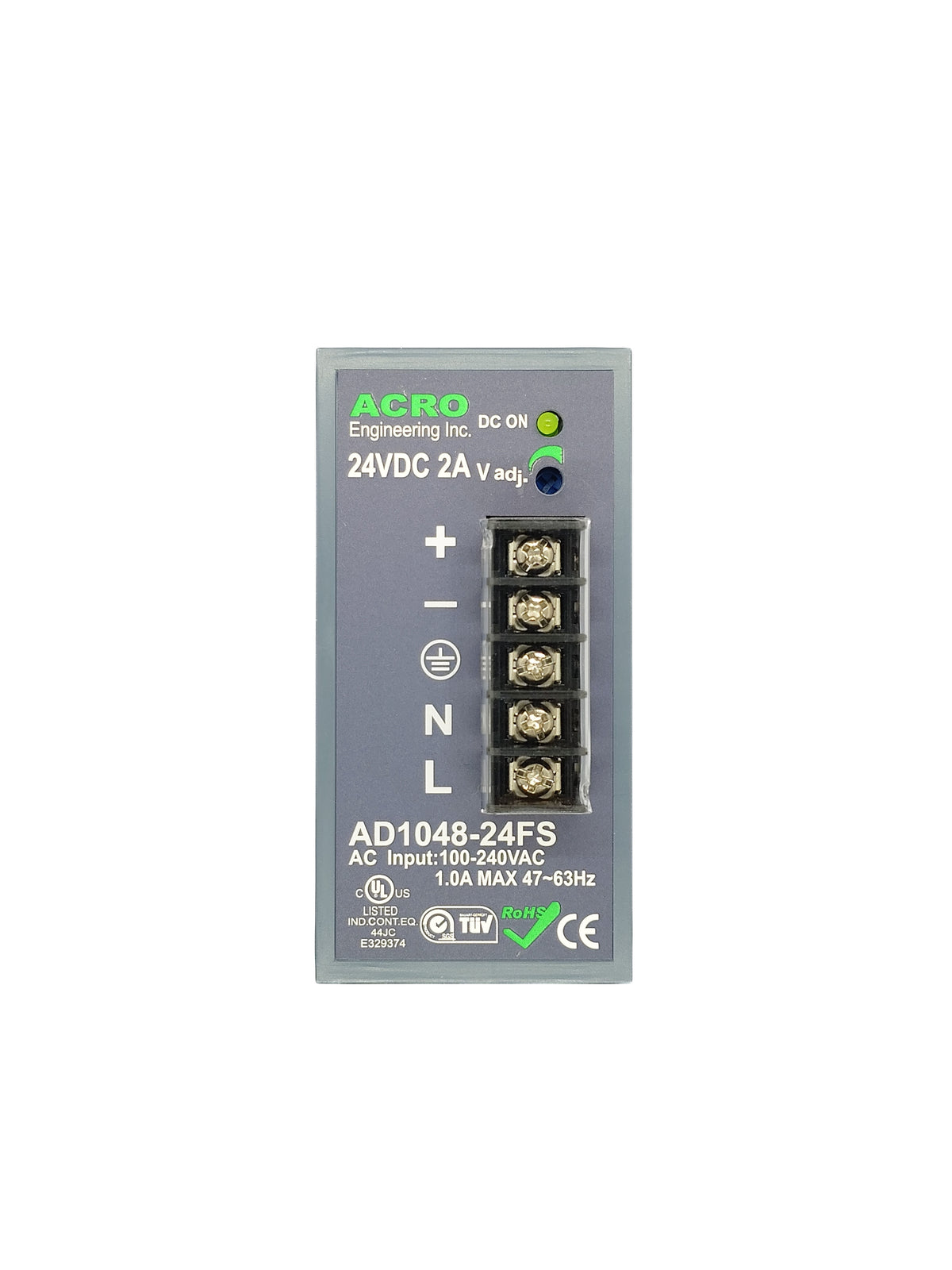

AD1048-24FS is a 24VDC 48W plastic housing DIN rail mouting switching power supply. Suitable for supplying power to PLC, HMI, sensors and other devices such as solenoid valves. It is compliant with both CE and UL regulations with built-in internal protection circuits.

  • Certifications: CE Marked, UL Listed, RoHS.
  • Circuit Protection: Includes over-voltage and short circuit protection, surge load and overload protection.
  • Adjustable Voltage: Conventional voltage adjustment knob.
  • Reliability: Designed for demanding condition.

Product details

General

Switching Frequency 66k Hz
Isolation Voltage (Input-Output) 3000 VAC / 4242 VDC
Isolation Voltage (Input-FG) 1500 VAC / 2121 VDC
Isolation Voltage (Output-FG) 500 VAC / 710 VDC
Isolation Resistance 100MΩ when Input-Output @500VDC
Operating Temperature -40°C ~50°C ambient
Derating 2.5% per degree from 50°C to 70°C
Relative Humidity 5%~95% RH, Non-condensing.
MTBF 100,000hrs Min. Per MIL-HDBK-217F, 25°C GB
Altitude During Operation 2000m
Installation position Vertical
Vibration Random vibration, 10~500Hz, 3 axise


Input

Input Voltage 100~240VAC / 120~370VDC
Input Frequency 47~63 Hz
Inrush Current (cold start) 11A/115VAC ; 22A/230VAC
Rated Input Current 1A Max., Vi=100~240VAC
Leakage Current Input-output 0.35mA, Input-FG 3.5mA


Output

Output Voltage accuracy ±1%
Rated Continuous Loading 2A@24VDC
Hold Up Time 30mS Min., Full load@230VAC.
Turn On Time 300ms
Rise Time 10ms
Fall Time 35ms
Transient Response - Recovery Time 2mS, Load change 50% to 100%
Transient Response - Voltage Deviation 5%, Load change 50% to 100%


Protection

Input Fuse 2A/250V
Internal Surge Load Protection Varistor, IEC 61000-4-5
Degree of Protection IP20
Short Circuit Protection Autorecovery
Over Voltage Protection Autorecovery
Rated Over Load Protection 150~250 %
